Application Scenarios for SS-7018 Mobile Screening Plant
The SS-7018 mobile screening plant has a wide range of application scenarios across multiple industries, including construction and mining:

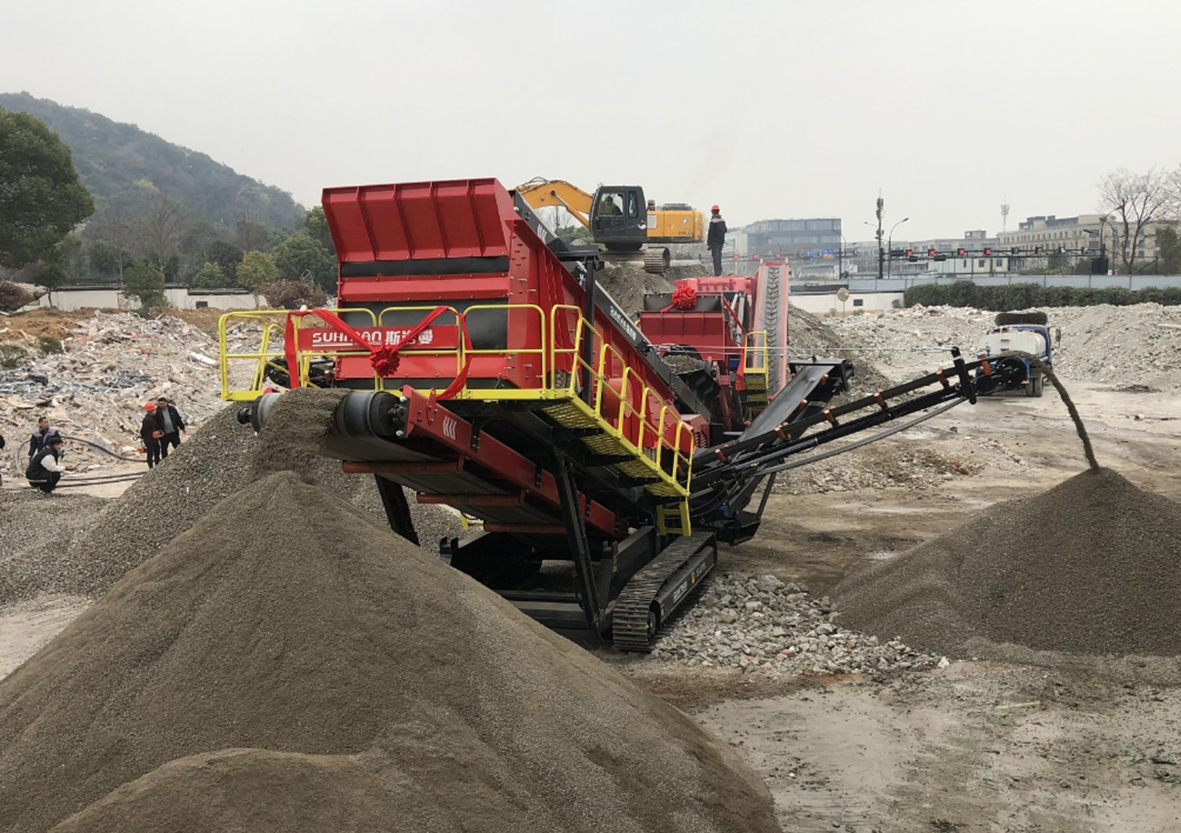

🪨 Quarry Operations - Aggregate Screening Plant
- Stone screening: Separate different particle sizes of aggregates
- Quarry production: Multi-product aggregate separation
- Gradation control: Precise aggregate sizing
- High capacity: 250-300 t/h quarry screening

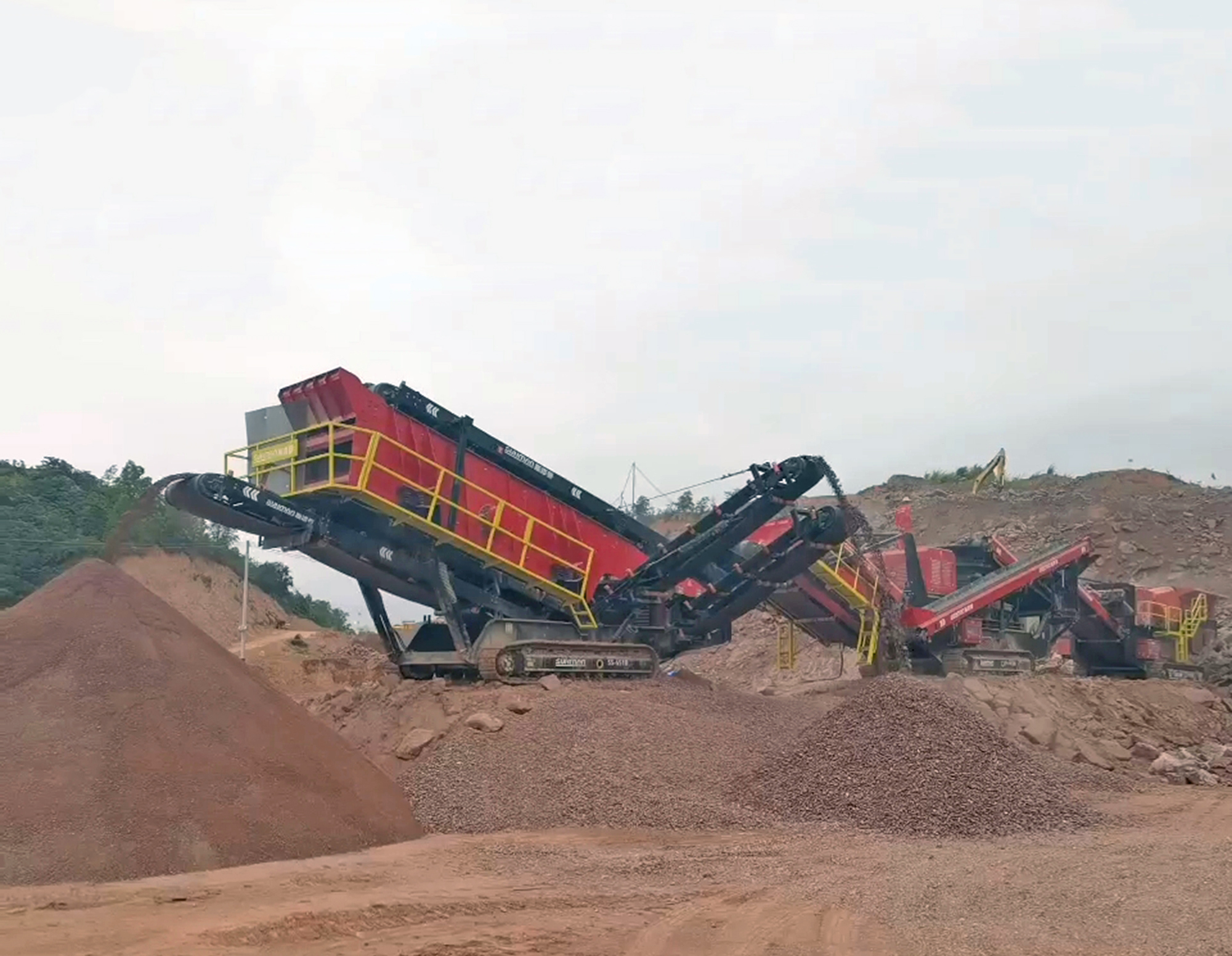

- Multiple products: 3-layer separation capability
The aggregate processing system delivers consistent particle size for construction markets.
⛏️ Mining Applications - Screening Plant for Mining
- Ore screening: Separate and process ores by size
- Mineral classification: Different ore grade separation
- Pre-screening: Remove fines before crushing
- Post-screening: Final product classification
- Tailings screening: Waste material separation
This equipment meets different production needs in mining.
🏗️ Crushing Screening Plant Configurations
- Complete solutions: Crushing and screening plant integration
- Pre-screening: Remove fines before primary crusher
- Post-screening: Final product classification after crushing
- Closed-circuit: Return oversize to crusher screening plant
- Multi-stage: Multiple screening plant units in series
The configuration maximizes production efficiency.
♻️ Construction Waste Disposal
- Recyclable material screening: Separate concrete, bricks, etc.
- Waste concrete blocks: Screen for reuse
- Resource recycling: Achieve material recovery
- Contaminant removal: Separate non-recyclable materials
- Size classification: Sort materials by dimension
The mobile screener enables efficient construction waste recycling.
🏚️ Building Demolition Debris Disposal
- Debris classification: Sort demolition waste
- Material separation: Concrete, wood, metal separation
- Screening debris: Remove fines from demolition waste
- Recyclable recovery: Extract reusable materials
- Waste reduction: Minimize landfill disposal
🔄 Material Recycling Applications
- Various materials: Multiple material type screening
- Resource utilization: Improve recycling efficiency
- Contaminant removal: Clean recycled materials
- Size grading: Classify recycled aggregates
- Quality improvement: Produce specification materials
The tracked equipment plays an important role in material recycling.
🌍 Portable Screening Plant Advantages
- Remote locations: No grid power needed (diesel option)
- Multiple sites: Easy relocation between projects
- Confined spaces: Compact mobile screening plant design
- All terrain: Stable operation on various ground conditions
- Quick setup: Start screening within hours
The portable equipment enables flexible on-site operations.
Product Parameter
| Project | Name | SS-7018 |
| Feeding equipment | Feeding capacity (t/h) | 300 |
| Hopper volume (m ³) | 5 | |
| Maximum feeding particle size (mm) | 100 | |
| Feeding height (mm) | 2700 | |
| vibrating screen | Vibration machine model | 7018 |
| Vibration screen size (mm) | 7000×1800 | |
| Processing capacity (t/h) | 300 | |
| Number of sieve layers (layers) | 3 | |
| Vibration screen power (kw) | 7.5×2 | |
| Main belt | Length x Width (mm) | 9700×1200 |
| Power (kw) | 11 | |
| Belt for finished materials | Length x Width (mm) | 7000×1000 |

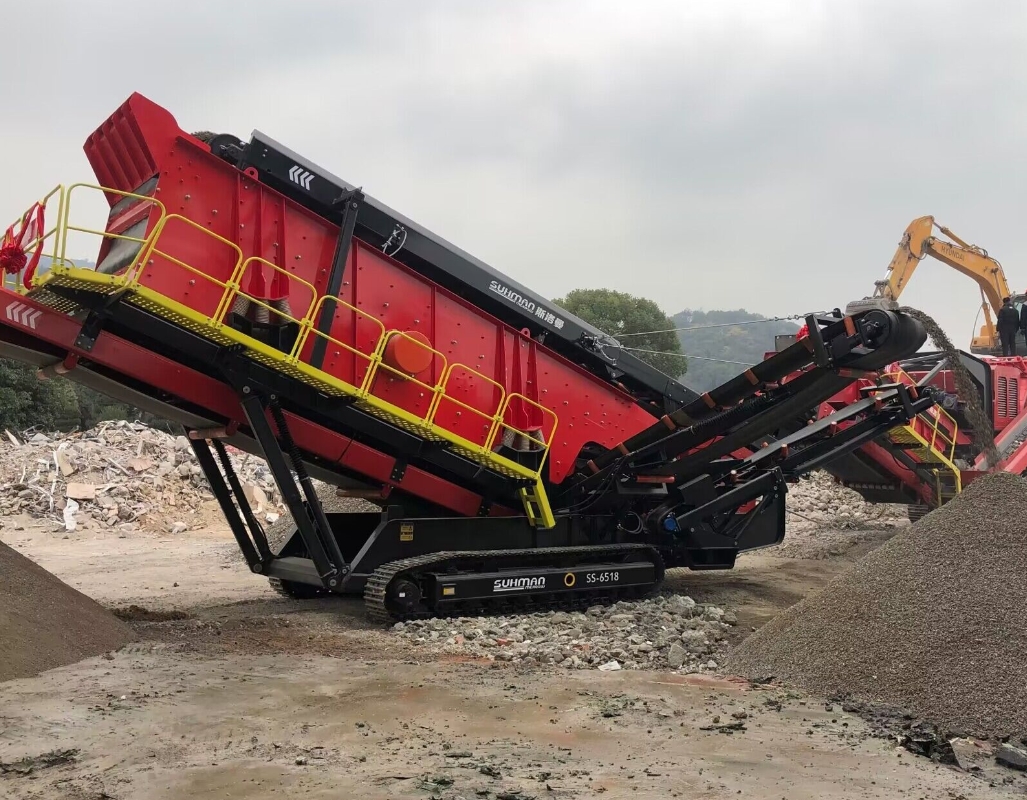

| Unloading height (mm) | 3500 | |
| Power (kw) | 7.5 | |
| conveyor belt A | Length x Width (mm) | 6000×800 |
| Unloading height (mm) | 2650 | |
| Power (KW) | 5.5 | |
| conveyor belt B | Length x Width (mm) | 6000×800 |
| Power (kw) | 5.5 | |
| Unloading height (mm) | 2700 | |
| conveyor belt C | Length x Width (mm) | 6000×800 |
| Power (kw) | 5.5 | |
| Discharge height | 2700 | |
| Transition belt | Length x Width (mm) | 1750×770 |
| Power (kw) | 3 | |
| Complete machine | Track chassis model | LDZ55-3657 |
| Engine power (kw) | 93 | |
| Whole machine weight (t) | 35 | |
| Machine processing capacity (t/h) | 250-300 | |
| Total power (kw) | 53 | |
| Working dimensions (length, width, height/mm) | 16800×13000×5230 | |
| Transportation dimensions (length, width, height/mm) | 16800×3500×3950 |
Video Presentation
Frequently Asked Questions (FAQ) - Mobile Equipment
What is a mobile screening plant?
What is a mobile equipment? A mobile equipment (also called portable equipment) is a crawler-type station that separates materials by size. The SS-7018 mobile equipment features a 3-layer vibrating screen (7000×1800mm) with 250-300 t/h capacity. This tracked equipment offers on-site mobility for quarry, mining, and crushing and processing applications.
What is the capacity of SS-7018 screening plant?
The SS-7018 equipment has a processing capacity of 250-300 tons per hour, depending on material type and screen configuration. The mobile equipment features 300 t/h feeding capacity and 7000×1800mm screening area.
What is the difference between crushing and screening plant?
What is the difference between crushing and processing equipment? A crushing and processing system combines both crushing and screening equipment in one system. The SS-7018 can be integrated into complete solutions for pre-screening, post-screening, or closed-circuit operations with crushers.
What materials can this screener plant process?
The SS-7018 screener plant handles:
- Quarry aggregates: Stone, gravel, sand
- Mining ores: Various ore types
- Construction waste: Concrete, bricks, debris
- Demolition debris: Mixed construction waste
- Recyclable materials: Various material types
Max feed size is 100mm.
How many screen layers does this screening plant have?
The SS-7018 screening plant has 3 screen layers for multi-product separation. The mobile screening plant can be flexibly configured with 1-3 layers depending on screening needs. Each layer can use different mesh sizes for precise grading.
What is the screen size?
The SS-7018 screening plant features a large screen size of 7000×1800mm. This screener plant provides extensive screening area for high capacity (300 t/h) and efficient material separation.
Is this a portable screening plant?
Yes! The SS-7018 is a portable equipment mounted on a crawler chassis (LDZ55-3657). This portable equipment offers on-site movement without external transportation, flexible positioning, and quick relocation between projects.
What is the power requirement?
The SS-7018 mobile screening plant has:
- Vibrating screen: 7.5kW × 2
- Main belt: 11 kW
- Finished material belt: 7.5 kW
- Conveyor belts A/B/C: 5.5kW each
- Engine: 93 kW (Cummins)
- Total power: 53 kW
What are the applications of mobile screening plant?
The mobile screening plant is used for:
- Crushing screening plant: Complete crushing and screening solutions
- Quarry operations: Aggregate screening and separation
- Mining applications: Ore screening and classification
- Construction waste: Recyclable material screening
- Demolition debris: Debris classification
- Aggregate screening: Concrete production aggregates
How to maintain a screening plant?
Screening plant maintenance includes:
- Regular screen mesh inspection
- Screen mesh replacement when worn
- Vibration motor maintenance
- Conveyor belt inspection and adjustment
- Lubrication system checks
- Anti-clogging device inspection
Follow the screening plant maintenance manual for optimal performance.
Where to buy screening plant for sale?
As a manufacturer, SUHMAN supplies mobile equipment directly. We provide mobile equipment, tracked equipment, and crushing and processing options. Contact us for pricing and availability.
What are the advantages of portable screening plant?
The portable screening plant offers:
- Easy relocation: Move between job sites quickly
- No foundation: No concrete foundation required
- Quick setup: Start screening within hours
- Tracked mobility: Crawler chassis for all terrain
- Self-contained: Complete screener plant system
- Cost-effective: Lower transportation costs
