Overview

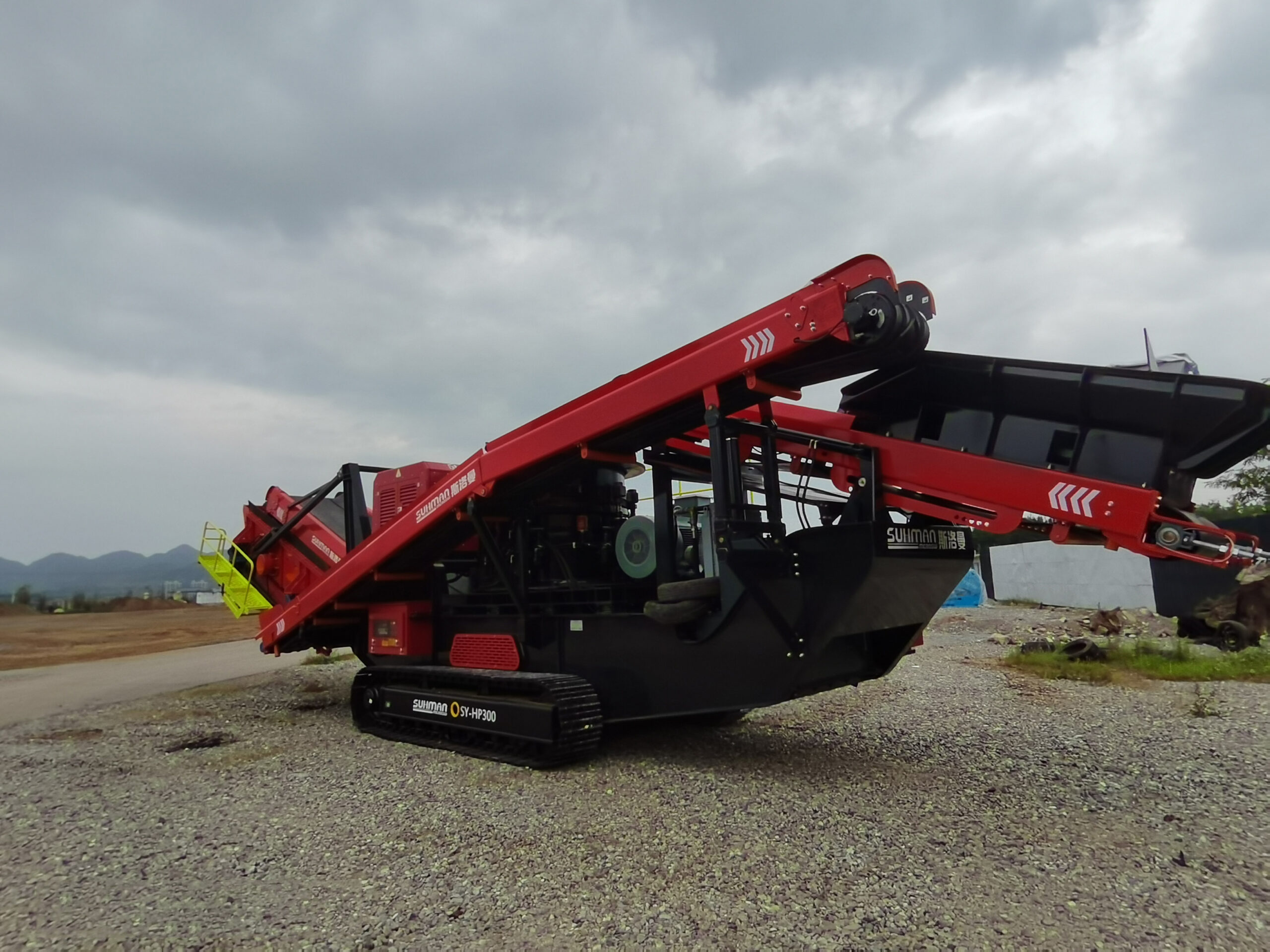

The SY-HP200 Mobile Cone Crusher is a high-efficiency tracked cone crushing plant designed for secondary and tertiary crushing applications. With a processing capacity of 100-250 TPH, this mobile cone crusher delivers consistent, well-graded aggregate products from hard and abrasive materials.
Mounted on a robust tracked chassis, the SY-HP200 combines the proven crushing performance of a HP200 cone crusher with the flexibility of mobile operations. Perfect for mining, quarrying, and aggregate production where mobility and crushing efficiency are essential.
Key Features
✅ High Capacity: 100-250 TPH secondary crushing capacity
✅ Mobile Design: Tracked mobility for easy site relocation
✅ Quality Output: Well-graded cubic products, 0-38mm adjustable
✅ Cummins Engine: Reliable power system (512kW)
✅ Multi-Cylinder Design: HP200 cone crusher technology
✅ Integrated Screening: Optional vibrating screen for closed-circuit operation
Applications
🏭 Mining Operations
Secondary and tertiary crushing of hard ores and rocks. Produces fine materials suitable for ball mill feeding or further processing.
Typical Materials: Iron ore, copper ore, gold ore, nickel ore
Output Sizes: 0-25mm, 0-38mm
🏗️ Quarry & Aggregate
Produce high-quality aggregates for concrete, asphalt, and construction applications. Excellent product shape and gradation.
Typical Materials: Granite, basalt, andesite, river pebbles
Output Sizes: 0-5mm, 5-10mm, 10-20mm, 20-40mm
♻️ Recycling Applications
Process demolition concrete, asphalt, and construction waste into valuable aggregates. Promotes sustainability and reduces landfill.
Typical Materials: Recycled concrete, reclaimed asphalt
Output Sizes: 0-40mm
🛣️ Road Construction
Produce specific-sized aggregates for road base, sub-base, and pavement layers. Mobile design allows on-site production.
Typical Materials: Quarry stone, gravel
Output Sizes: 0-20mm, 20-40mm
Mobile Cone Crusher vs Jaw Crusher
| Factor | Cone Crusher (SY-HP200) | Jaw Crusher |
|---|---|---|
| Crushing Stage | Secondary/Tertiary | Primary |
| Max Feed Size | 185mm | 700mm |
| Product Shape | Cubical, well-graded | Elongated, variable |
| Capacity | 100-250 TPH | 200-350 TPH |
| Wear Parts Cost | Higher | Lower |
| Best For | Hard rock, fine products | Primary size reduction |
| Power Efficiency | Higher for fine crushing | Higher for primary |
Recommendation: For complete crushing plants, use jaw crusher for primary crushing, then cone crusher for secondary/tertiary crushing.
Product Parameter
| Project | Description | SY-HP200 | |
| 1 | Feeding equipment | Hopper volume（m³） | 1.5 |
| 2 | Feed height（mm） | 2600 | |
| 3 | Maximum feed size（mm） | 185 | |
| 4 | Size of feeder (length x width)（mm） | 10250×1000 | |
| 5 | Feed capacity （t/h） | 150-300 | |
| 6 | Power of Feeder | 7.5 | |
| 7 | Cone Crusher | Models | HP200 |
| 8 | Maximum feed particle size （mm） | 185 | |
| 9 | Size range of ore discharge outlet （mm） | 0-38 | |
| 10 | Processing capacity（t/h） | 100-250 | |
| 11 | Power（kw） | 160 | |
| 12 | Weight（t） | 12 | |
| 13 | Vibrating screen | Screen size (length x width)（mm） | 5000×1500 |
| 14 | Maximum feeding granularity（mm） | 100 | |
| 15 | Processing capacity（t/h） | 150-500 | |
| 16 | Power（kw） | 3.7kw×2 | |
| 17 | The number of screen layer (layer) | 1 | |
| 18 | Main belt conveyor (top of the screen) | Width/length （mm） | 1200×19500 |
| 19 | Discharge height（mm） | 3200 | |
| 20 | Power（kw） | 15 | |
| 21 | Sift down the belt | Width/length （mm） | 1000×11500 |
| 22 | Discharge height（mm） | 2400 | |
| 23 | Power（kw） | 7.5 | |
| 24 | Transition Belt Machine | Width/length （mm） | 500*4400 |
| 25 | Discharge height（mm） | 1400 | |
| 26 | Power（kw） | 3 | |
| 27 | Return material belt machine | Width/length （mm） | 500*18500 |
| 28 | Discharge height（mm） | 3800 | |
| 29 | Power（kw） | 5.5 | |
| 30 | Track system | Country of origin | England |
| 31 | Brand | Strickland | |
| 32 | Specification length x width（mm） | 4160×500 | |
| 33 | Maximum inclination of walking （°） | 30 | |
| 34 | Walking speed（km/h） | 0.8-1.5 | |
| 35 | Power System (for single walking) | Models | QSB3.9-G3 |
| 36 | Fuel consumption （L/h） | 3.9 | |
| 37 | Power（kw） | 79 | |
| 38 | Tank volume（L） | 200 | |
| 39 | Emission standards | National III | |
| 40 | Power System -LRB-both oil and electricity) | Models | QSZ13-G11(CUMMINS) |
| 41 | Fuel consumption （L/h） | ||
| 42 | Power（kw） | 512 | |
| 43 | Tank volume（L） | 600 | |
| 44 | Emission standards | National III | |
| 45 | Accessories brand | Control System (electrical) | Chuan Ken |
| 46 | Walking system | Strickland | |
| 47 | Conveyor belt | Qingdao Global | |
| 48 | Hydraulic machinery | Bomke | |
| 49 | The engine | CUMMINS | |
| 50 | Steel | Models | Q355B（Materials used for warships） |
| 51 | The whole machine | Weight（t） | 42 |
| 52 | Shipping dimensions（mm） | 15800×3500×3800 | |
| 53 | Working size（mm） | 15200×3500×4100 |
Video Presentation
Frequently Asked Questions (FAQ)
What is the maximum feed size for the SY-HP200 cone crusher?
The maximum feed size is 185mm. For larger material, use a jaw crusher for primary crushing before feeding to the cone crusher.
What is the production capacity?
The SY-HP200 has a rated capacity of 100-250 TPH depending on material hardness, feed size, and CSS setting. Hard rock (granite, basalt): 100-180 TPH. Medium rock (limestone): 180-250 TPH.
What is the difference between HP200 and other cone crushers?
The HP200 is a multi-cylinder hydraulic cone crusher with these advantages:
- Higher crushing force
- Better product shape (cubical)
- Easier CSS adjustment
- Longer wear parts life
- More reliable for hard rock
Can the output size be adjusted?
Yes! The discharge size is adjustable from 0-38mm by changing the CSS (Closed Side Setting). Adjustment can be done hydraulically without stopping the crusher.
What is the power consumption?
The cone crusher motor is 160 kW, with total system power of 512 kW (Cummins engine). Average fuel consumption is approximately 40-50 L/h depending on load and material.
How long do cone crusher wear parts last?
Typical wear parts life:
- Mantle & Concave: 300-500 hours (hard rock), 500-800 hours (medium rock)
- Feed Plate: 500-800 hours
- Bushings: 1000-1500 hours
Do you supply cone crusher wear parts?
Yes! SUHMAN supplies genuine cone crusher wear parts including mantles, concaves, feed plates, bushings, and seals. We maintain inventory for fast shipping (48 hours).
What is the price of cone crusher SY-HP200?
Cone crusher price varies based on configuration. Contact us for a customized quote including:
- Base machine price
- Optional screening system
- Spare parts package
- Shipping to your location
What is the delivery time?
Standard production time is 30-45 days. Shipping time depends on destination (Southeast Asia: 15-20 days, Africa: 30-35 days, South America: 35-45 days).
Do you provide installation and training?
Yes! SUHMAN provides:
- Free installation guidance
- Operator training (on-site or at factory)
- Maintenance training
- 24/7 technical support
- Cone crusher wear parts supply
